Traction Atlas Frameset

Regular price ₱15,600.00 PHP
Regular price Sale price ₱15,600.00 PHP
Sale Sold out
Shipping calculated at checkout.

27.5, thru-axle, hollow crank, 1x10sp

Colors and sizes available:

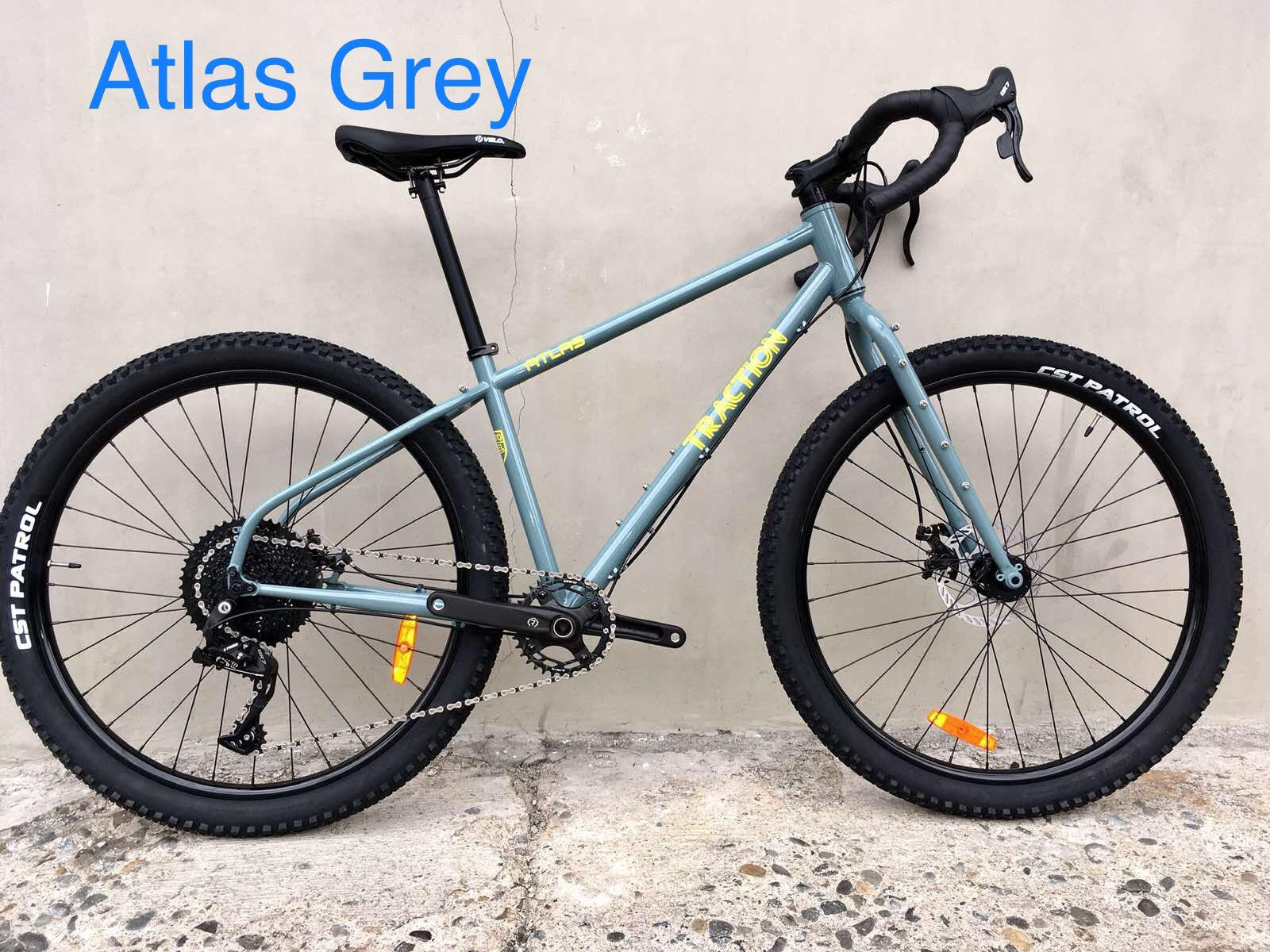

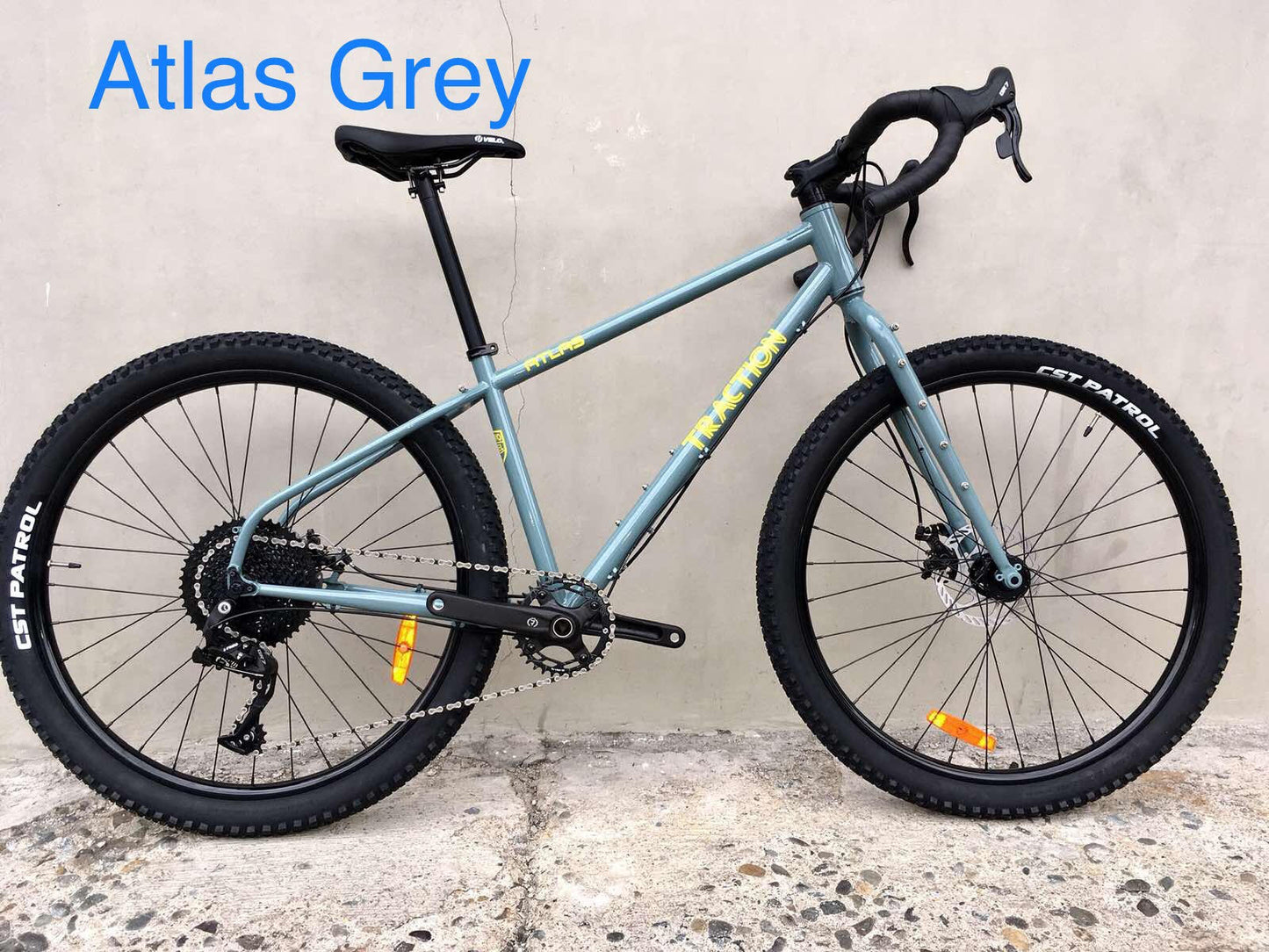

XS: gray/yellow

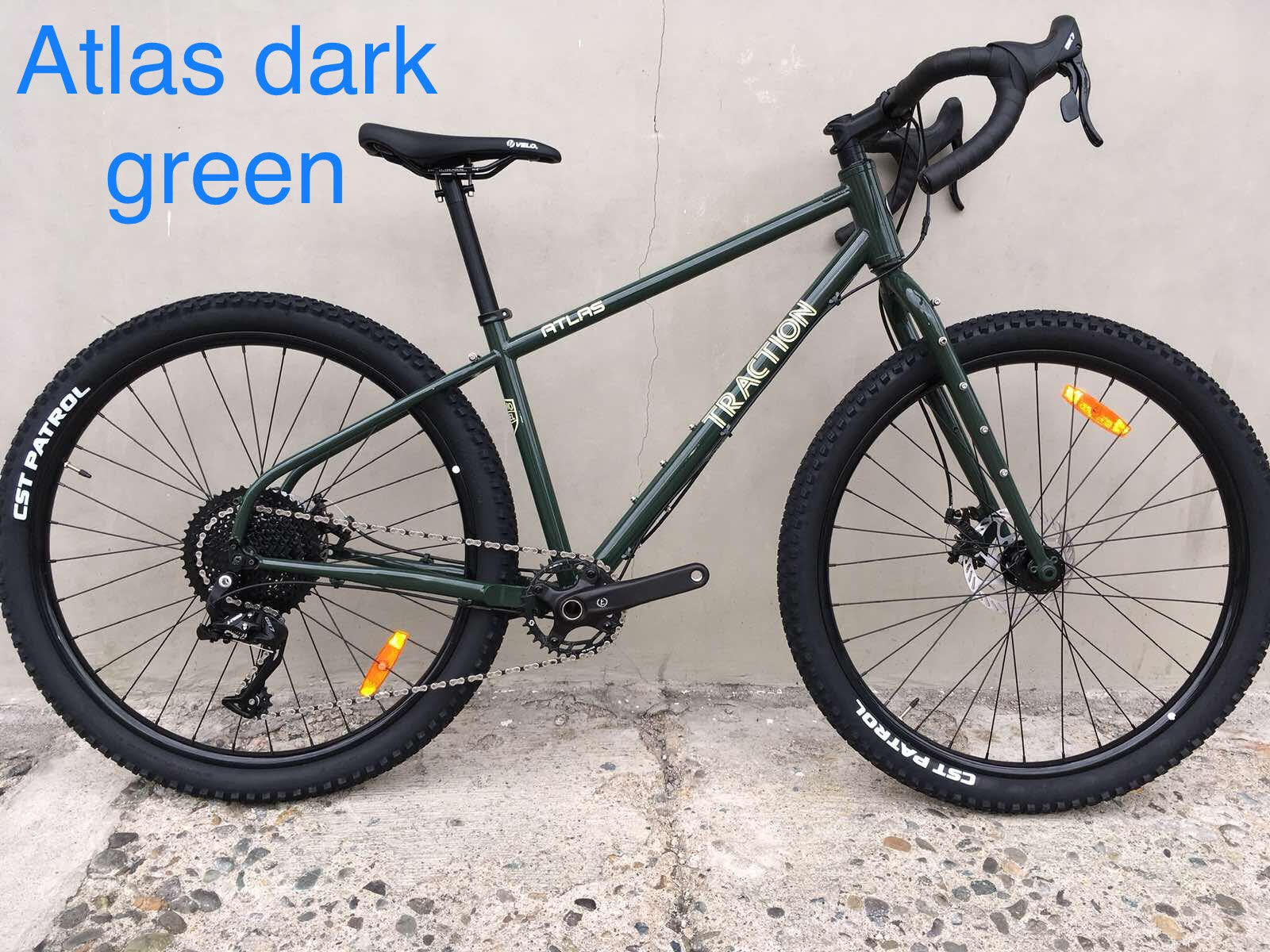

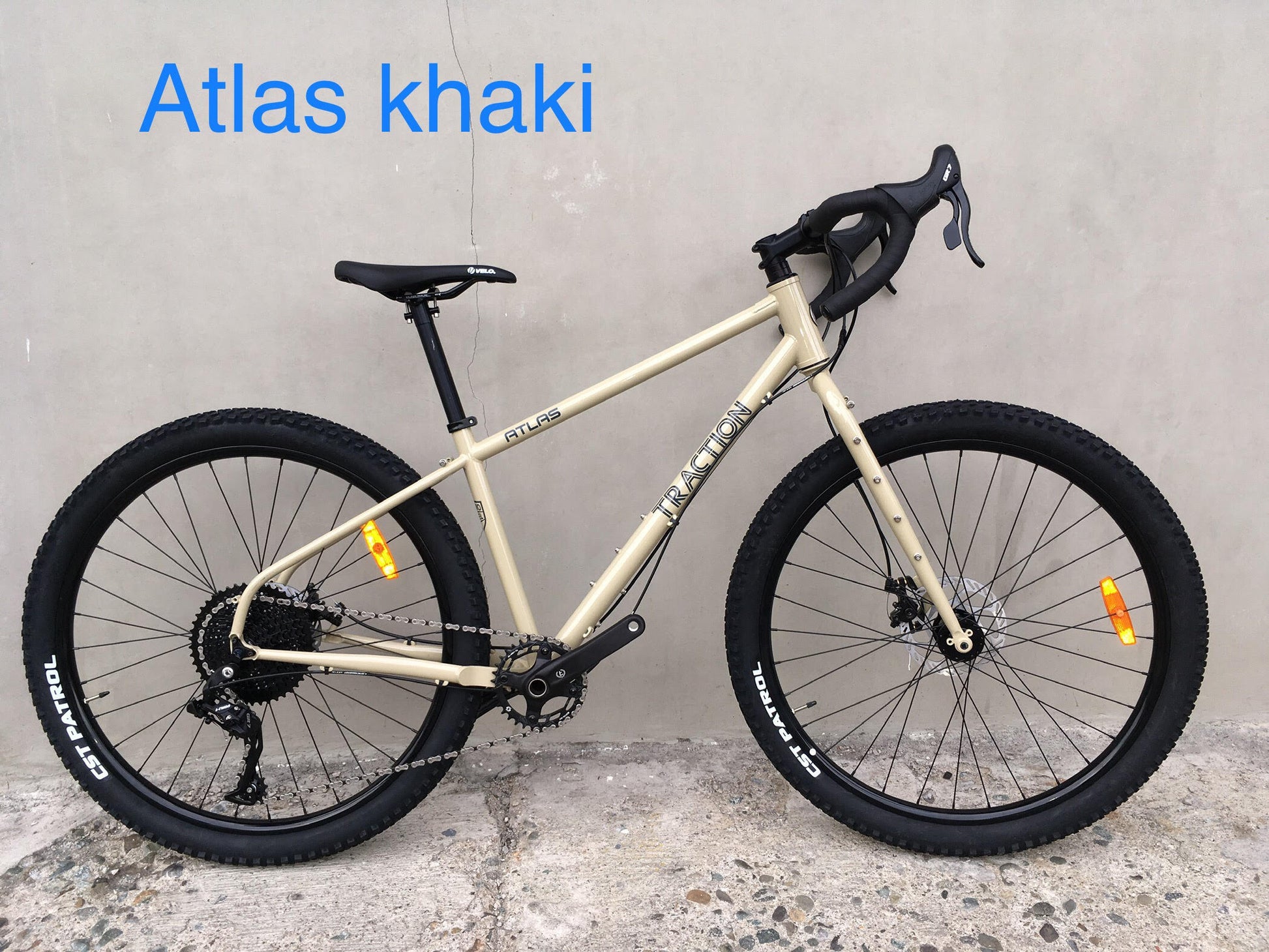

S: gray/yellow, khaki/dark blue, dark green/beige
M: gray/yellow


  • Frame and Fork: Phosphorus coated 4130 Chromoly steel. Fits tires
  • up to 700x50/27.5x2.6, 700x40/27.5x2.3 with fenders
  • Handlebar: Alloy, 16 degrees flare, 400mm for size XS, 420mm for S and M frame sizes
  • Stem: Alloy, extension 70mm, rise +-7 degrees, height 40mm
  • Seat post: 6061 alloy, zero-setback, 27.2, length 350mm
  • Headset: Neco, alloy, sealed bearing
  • Hubs: Alloy, sealed bearings, Thru Axle, F100x15, R142x12, 10speed
  • Rims: Alloy double wall, 27.5X14Gx32holes, H=18mm, W=25mm
  • Spokes: Stainless
  • Tires: CST 27.5X2.4 w/tube, Presta valve
  • Crank: 34T, alloy, hollow type
  • Chain: KMC X10
  • Cables: Jagwire
  • Brake caliper: Zstar
  • Saddle: Velo
  • Bartape: Velo
  • Pedal: VP
  • Cog set: Ltwoo 11-46T 10speed
  • Brake Levers: Ltwoo GR7 w/shifters
  • RD: Ltwoo GR7
