Traction Atlas Bike

27.5 / 650b, 12 x 100 front & 12 x 142mm rear thru-axle, hollow crank, 1x10sp

Colors and sizes available:
XS: gray/yellow
S: gray/yellow, khaki/dark blue, dark green/beige
M: gray/yellow

Specifications:

• Frame and Fork: Phosphorus coated 4130 Chromoly steel. Fits tires
• up to 700x50/27.5x2.6, 700x40/27.5x2.3 with fenders
• Handlebar: Alloy, 16 degrees flare, 400mm for size XS, 420mm for S and M frame sizes
• Stem: Alloy, extension 70mm, rise +-7 degrees, height 40mm
• Seat post: 6061 alloy, zero-setback, 27.2, length 350mm
• Headset: Neco, alloy, sealed bearing, non-tapered, internal, 44mm
• Steerer Tube: 1 1/8in
• Hubs: Alloy, sealed bearings, Thru Axle, F100x15, R142x12, 10speed
• Rims: Alloy double wall, 27.5X14Gx32holes, H=18mm, W=25mm
• Spokes: Stainless
• Tires: CST 27.5X2.4 w/tube, Presta valve
• Crank: 34T, alloy, hollow type (up to 44T compatible with the frame)
• Chain: KMC X10
• Cables: Jagwire
• Brake caliper: Zstar
• Saddle: Velo
• Bartape: Velo
• Pedal: VP
• Cog set: Ltwoo 11-46T 10speed
• Brake Levers: Ltwoo GR7 w/shifters

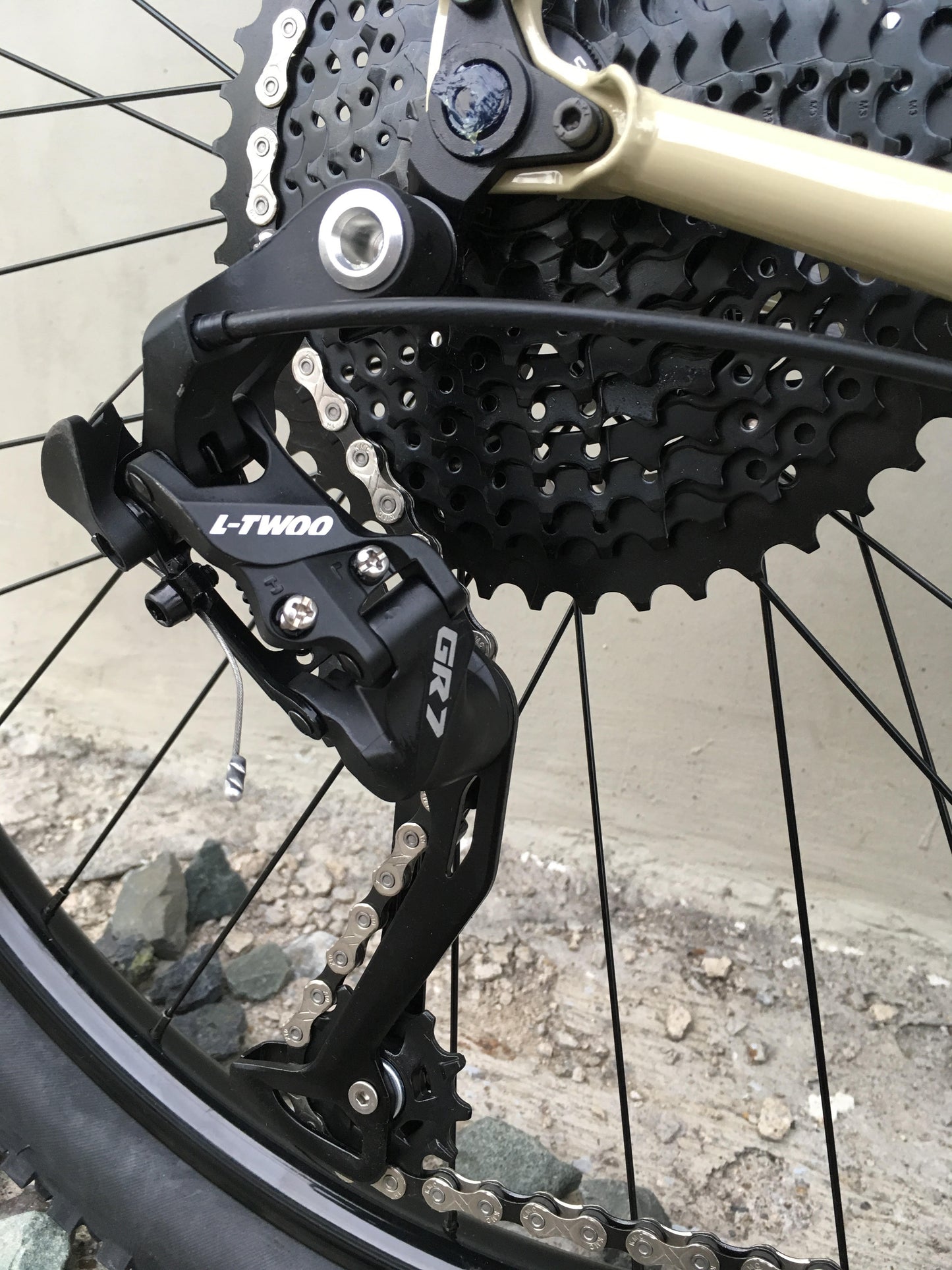

• RD: Ltwoo GR7
• Suspension Corrected frame for 100mm travel fork

Pre-order options available for sizes or colors not currently in stock.
