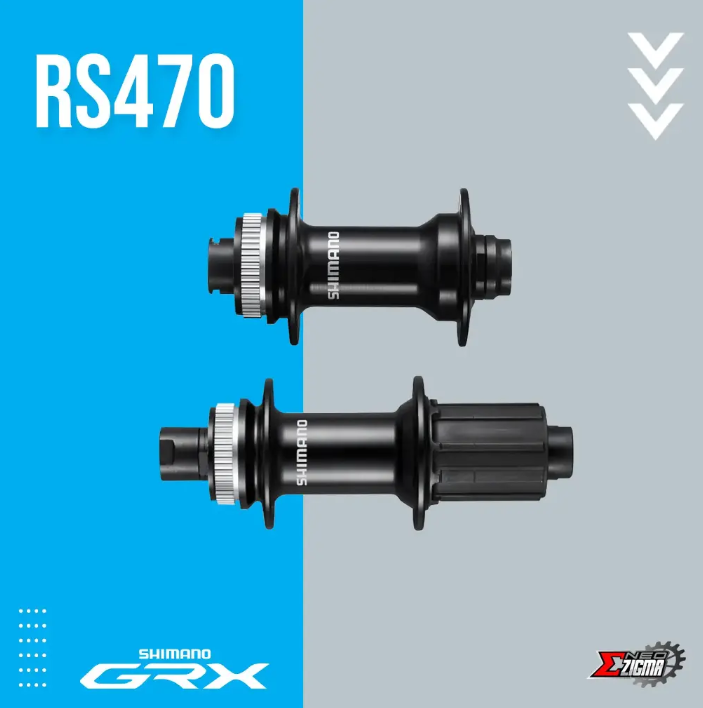

Shimano GRX RS470 100x142mmx 32H Center Lock Disc F/R
Regular price
₱2,830.00 PHP
Regular price
Sale price
₱2,830.00 PHP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

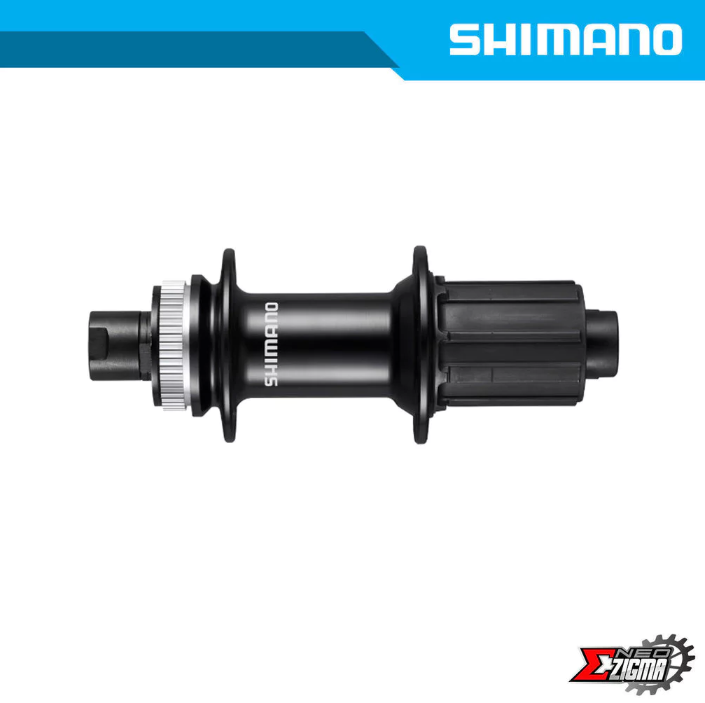

SHIMANO - Rear FREEHUB - CENTER LOCK - Disc Brake - 142x12 mm E-THRU Axle - 10/11-Speed
For E-THRU disc brake compatible bicycles, the RS470 FREEHUB blends good looks and high quality performance.
Features:
- High quality sealing cup and cone bearing
- Internal grease sleeve
Product Specifications:
| MODEL NO | FH-RS470 |
|---|---|
| SERIES | SHIMANO |
| Color | Black |
| Remarks | * Can be used for 10-speed with an additional spacer |
| Color|1 Hub shell | Black |
|---|---|
| Brake type | CENTER LOCK disc brake |
| Rear speeds | 11/10 * |
| O.L.D. (mm) | 142 |
| Spoke hole|28H | ✔ |
| Spoke hole|32H | ✔ |
| Internal serration disc brake rotor lock ring|without | ✔ |
| Axle fixing method | 12 mm E-THRU |
| Thru Axle (Length x Inner diameter ; mm)|142 x 12 | ✔ |
| Flange distance (mm) | 55.7 |
| Offset (mm) | 7.45 |
| P.C.D. left / right (mm) | 44/45 |
| Flange diameter Left/Right (mm) | 52.8/53.8 |
| HG spline (ROAD 11-speed) | ✔ |
| Seal|Hub | Contact |
| Seal|FREEHUB body | Contact |
| Internal grease sleeve | ✔ |

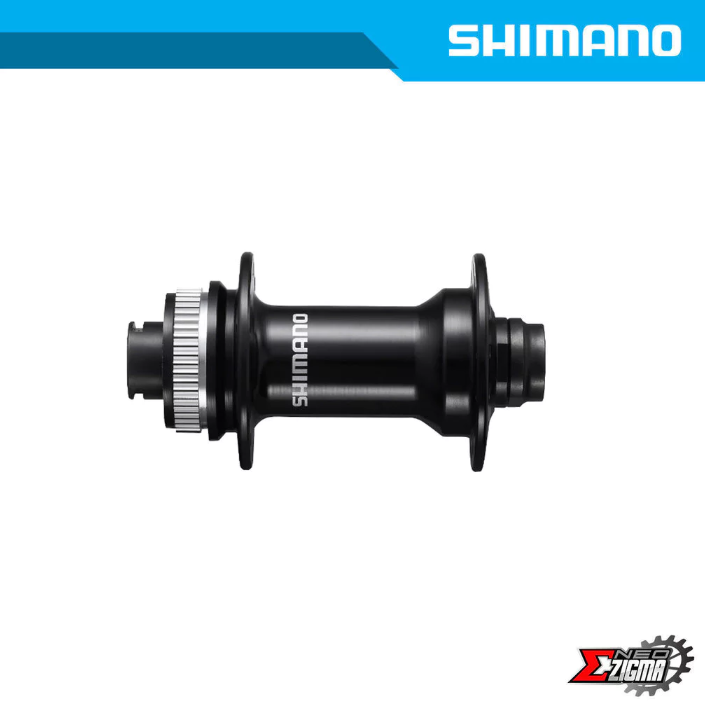

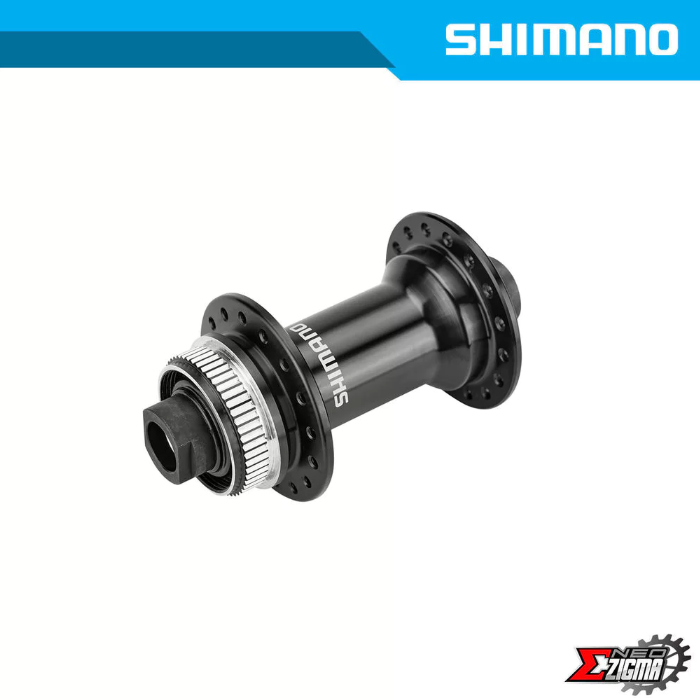

SHIMANO - Front Hub - CENTER LOCK - Disc Brake - 100x12 mm E-THRU Axle
For E-THRU disc brake compatible bicycles, the RS470 front hub blends good looks and high quality performance.
Features:
- High quality sealing cup and cone bearing
- Internal grease sleeve
Product Specifications:
| MODEL NO | HB-RS470 |
|---|---|
| SERIES | SHIMANO |
| Color | Black |
| Color|1 Hub shell | Black |
| Brake type | CENTER LOCK disc brake |
|---|---|
| O.L.D. (mm) | 100 |
| Spoke hole|28H | ✔ |
| Spoke hole|32H | ✔ |
| Axle fixing method | 12 mm E-THRU |
| Thru axle (length x inner diameter ; mm)|100 x 12 | ✔ |
| Flange distance (mm) | 59.6 |
| Offset (mm) | 6.3 |
| P.C.D. left / right (mm) | 44 |
| Flange diameter (mm) | 52.8 |
| Seal | Contact |
| Internal grease sleeve | ✔ |
| Radial lacing | ✔ |
