Shimano HB-M475 & FH-M475 QR Disc Brake Hubs (Front & Rear)

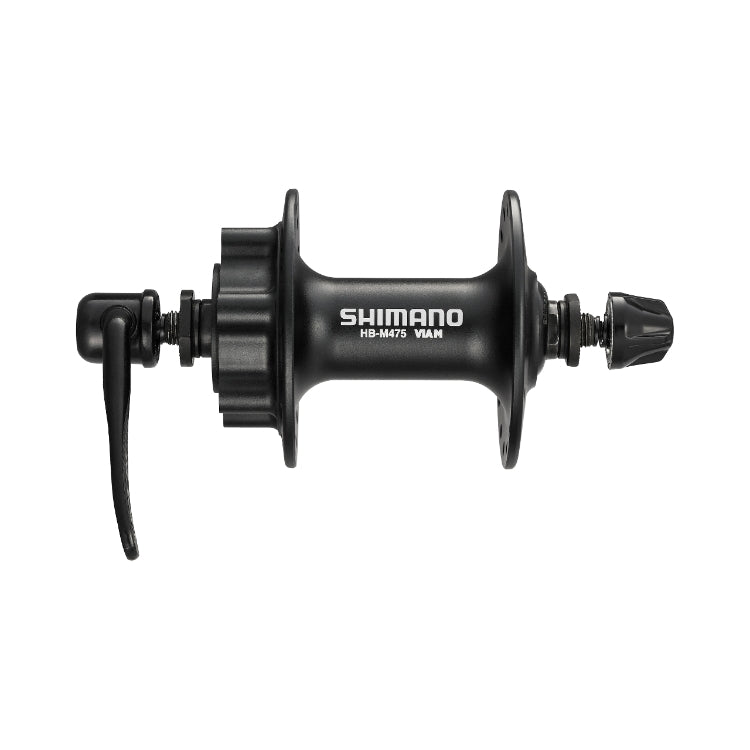

HB-M475

SHIMANO - Front Hub - 6-Bolt Disc Brake - Quick Release - MTB

For use with 6-bolt disc brake rotors and quick release dropouts, the SHIMANO HB-M475 hub is available in silver and black.

Specifications:

• MODEL NO: HB-M475
• Colors: Black | Silver

• Brake Type: 6 BOLT disc brake

• Axle Fixing Method: Quick Release
• Flange Diameter Left/Right: 70.6mm

• Flange Distance: 59.2mm

• Offset: 5.5mm

• P.C.D. Left / Right: 61/61mm

• Flange Diameter: 70.6mm

• O.L.D.: 100mm

• P.C.D.: 61/61mm

• Seal: Contact
• Quick Release Skewer Length: 133mm
• Rear Speed: 8-10s

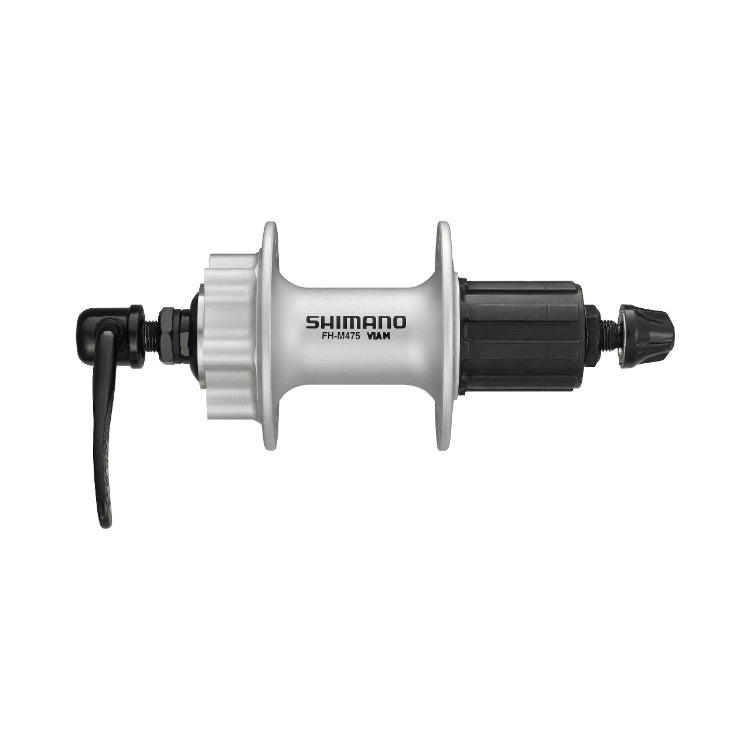

FH-M475

SHIMANO - Rear FREEHUB - 6-Bolt Disc Brake - Quick Release - 8/9/10-speed

For use with 6-bolt disc brake rotors and quick release dropouts, the SHIMANO FH-M475 rear hub is available in silver and black and compatible with 8, 9, and 10-speed cassettes.

Specifications:

• MODEL NO: FH-M475
• Colors: Black | Silver

• Brake Type: 6 BOLT disc brake

• Axle Fixing Method: Quick Release
• Flange Diameter Left/Right: 70.6mm

• Flange Distance: 57.1mm

• International Serration Disc Brake Rotor Lock Ring: Without
• Offset: 6.8m

• P.C.D. Left / Right: 61/61mm

• Flange Diameter: 70.6mm

• O.L.D.: 135mm

• P.C.D.: 61/61mm

• Seal: Contact
• Quick Release Skewer Length: 166, 170, or 173mm comaptible
• Rear Speed: 8-10s, MTB 11s
• Engagement Type: Pawl Ratchet
• HG Spline (Others): ✔
