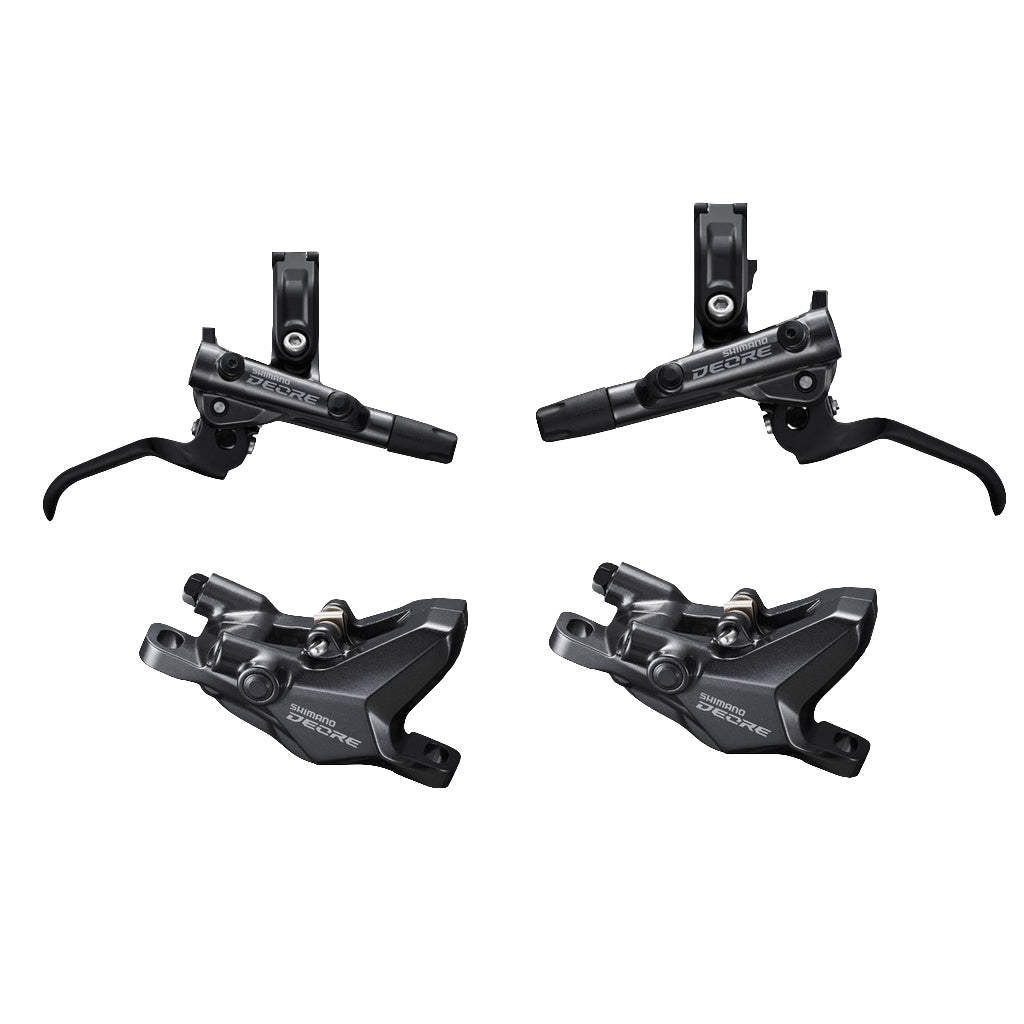

Shimano Deore BR/BL-M6100 2-Piston Hydraulic Brakeset
Regular price
₱6,940.00 PHP
Regular price
Sale price
₱6,940.00 PHP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Dual piston Deore brakeset that offers serious brake power and durability at a good price.
Details about the Brake Levers & Brake Calipers:

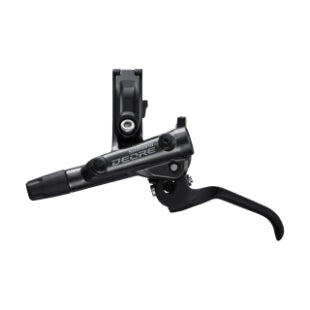

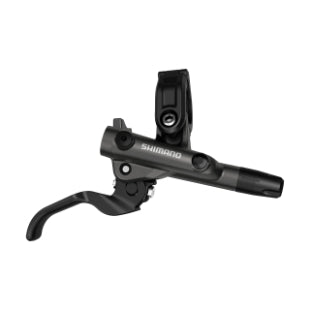

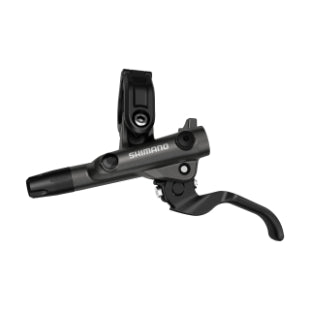

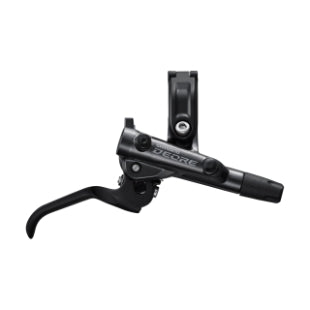

DEORE BRAKE LEVER I-SPEC EV
BL-M6100
With quicker brake engagement and shorter free stroke, the SHIMANO DEORE BL-M6100 brake lever delivers intuitive braking so you can stay focused on the trail ahead. The I-SPEC EV shift lever offers a wider adjustment range for superior rider tuning.
BENEFIT: Intuitive and powerful braking
FEATURE: Quicker brake engagement with shorter free stroke
FEATURE: Rider tunable and action-optimized cockpit
BENEFIT: High-performance brake control
FEATURE: Additional contact point for a stiffer brake lever
BENEFIT: 10 deg. rotation angle setting range for I-SPEC EV shifting lever
BL-M6100 Lever Specifications:
- Model No: BL-M6100
- Series: DEORE
- Brake Type: Hydraulic Disc Brake
- Lever Size: 2 finger
- Brake Hose (Kit): SM-BH90-SS
- Hose Joint: Straight
- Brake Hose Color (Kit): Black
- J-Kit Spec (for OEM): Yes
- SERVO WAVE: Yes
- Reach Adjust Tool: Adjustable
- Compatible Shifter Mount: Clamp Band and I-SPEC EV compatible
- Clamp Band: Open Clamp compatible
- Oil: SHIMANO mineral
- Funnel Bleeding: Yes
Featured Technology:
- SERVOWAVE ACTION When you pull a SERVOWAVE brake lever, initial pad travel is fast, so little lever movement is needed to bring the pads into contact with the rotor. The power multiplication factor then increases rapidly at the pad-to-rim contact so more of the lever stroke is used to apply greater braking power with improved control.
- I-SPEC EV creates a clean and action-optimized cockpit that provides greater focus and flexibility for a wider range of riders.

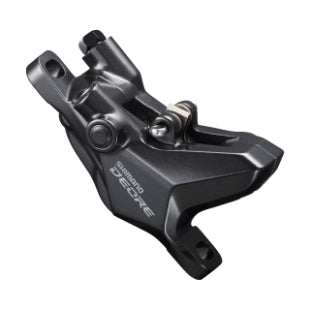

DEORE 2-PISTON BRAKE CALIPER
BR-M6100
The SHIMANO DEORE M6100 caliper features lightweight braking performance and reliable stopping power in all conditions.
BENEFIT: Superior modulation gives you the power you need at low weight
FEATURE: Quick piston retraction
FEATURE: Lightweight 2-piston disc brake caliper
BR-M6100 Caliper Specifications:
- Model No: BR-M6100
- Series: DEORE
- Brake type: Hydraulic disc brake
- Brake hose (kit): SM-BH90-SS
- Hose joint: Straight
- Brake hose color (kit): Black
- J-Kit Spec (for OEM): Yes
- ICE TECHNOLOGIES Pad Compatible Caliper: Yes
- Disc Pad Compatibility: Standard 1- G05S-RX Resin (w/o fin). Standard 2 J05A-RF Resin (w/ fin). Option 1- G04S-MX Metal w/o fin).
- Recommended brake lever: BL-M6100
- Recommended disc brake rotor: SM-RT54 *, SM-RT56 *, SM-RT64, SM-RT66
- Compatible rotor size: 140mm (SS), 160mm (S), 180mm (M), 203mm (L), 220mm (LL)
- Oil: SHIMANO Mineral
- One Way Bleeding: Yes
- Mount Type: Post Type
- Piston: 2
- Caliper Fixing Screw Tool Size: 5mm
- Caliper Fixing Screw Anti Loosen Method: Snap Ring
- Pad Mount: Split Pin (Stainless Steel)
- Note: *Rotors SM-RT54 and SM-RT56 only compatible with resin pads
- SHIMANO ICE TECHNOLOGIES components deliver more consistent braking performance by reducing heat buildup in the system. This helps prevent brake fade, which can happen when a rider applies the brakes repeatedly and strongly over a short period of time, such as when descending a long, steep hill.
- ONE WAY BLEEDING was developed for quick and easy prevention of air in our hydraulic system. We have streamlined the oil route throughout the system to prevent air bubbles from being captured in the system.
One way oil routing plus a funnel tool with mineral oil provides an easy and clean bleeding system.
