Shimano Deore BL-M6100 + BR-M6100 Hydraulic Disc Brake Set

Great flat bar hydraulic brakes for trail or road. Includes the Shimano BL-M6100 levers and the Shimano BR-M6100 2-piston brake calipers.

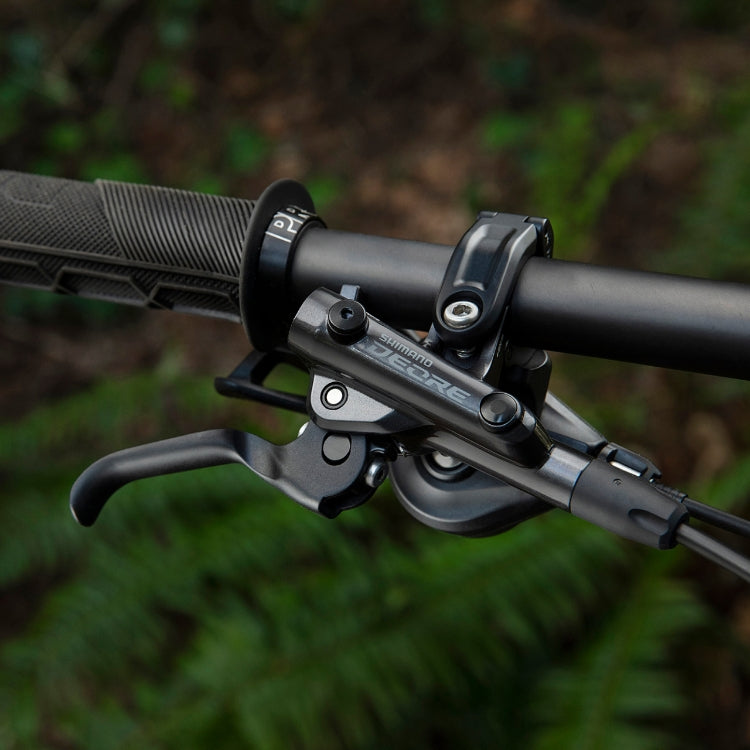

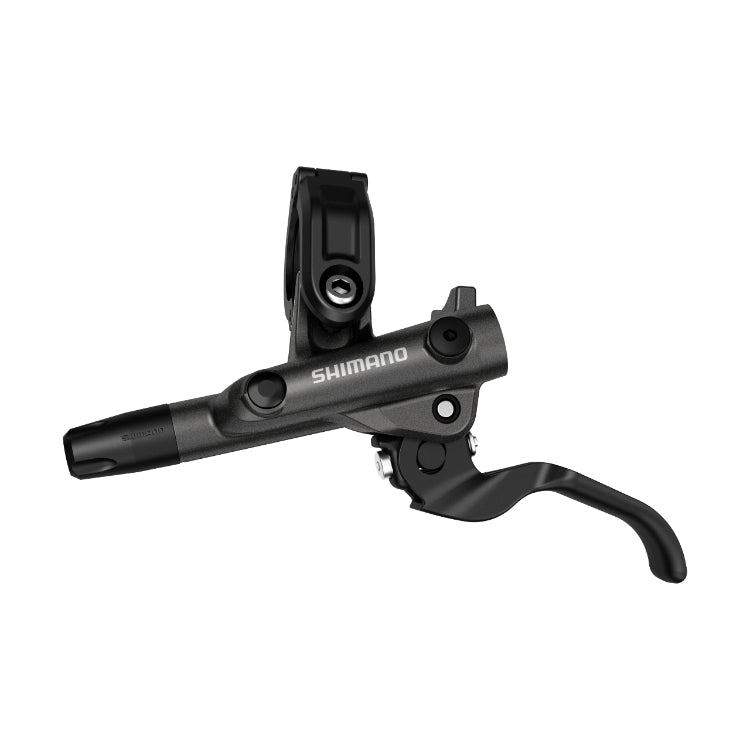

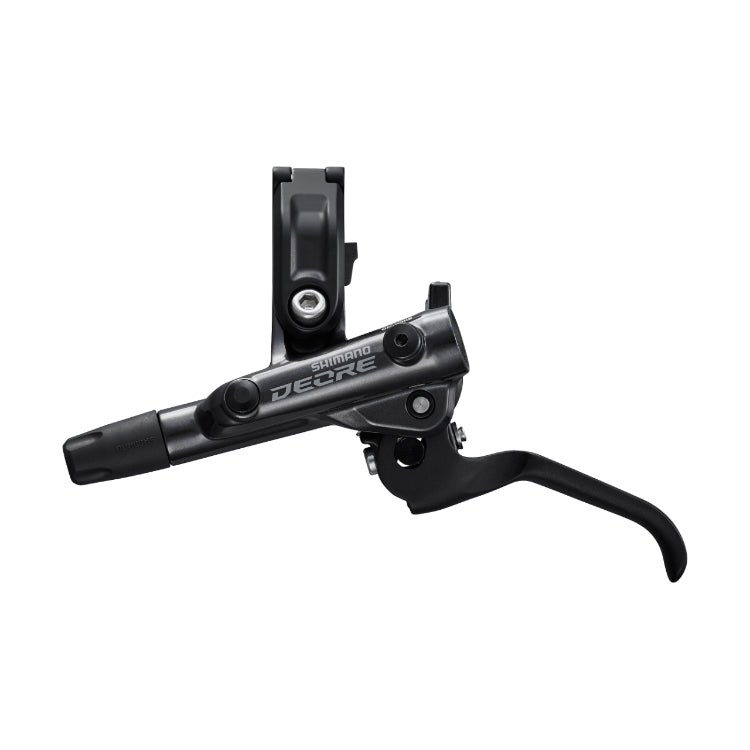

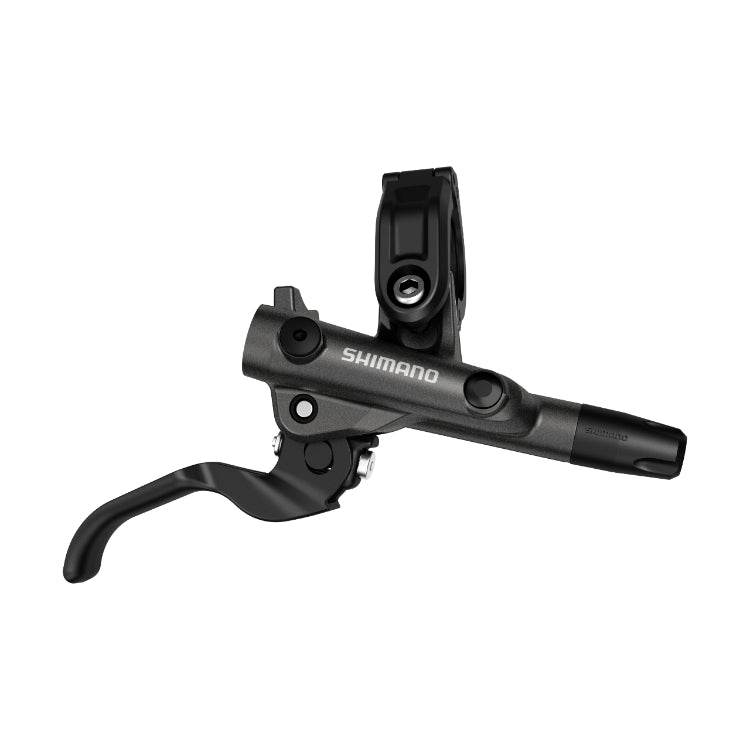

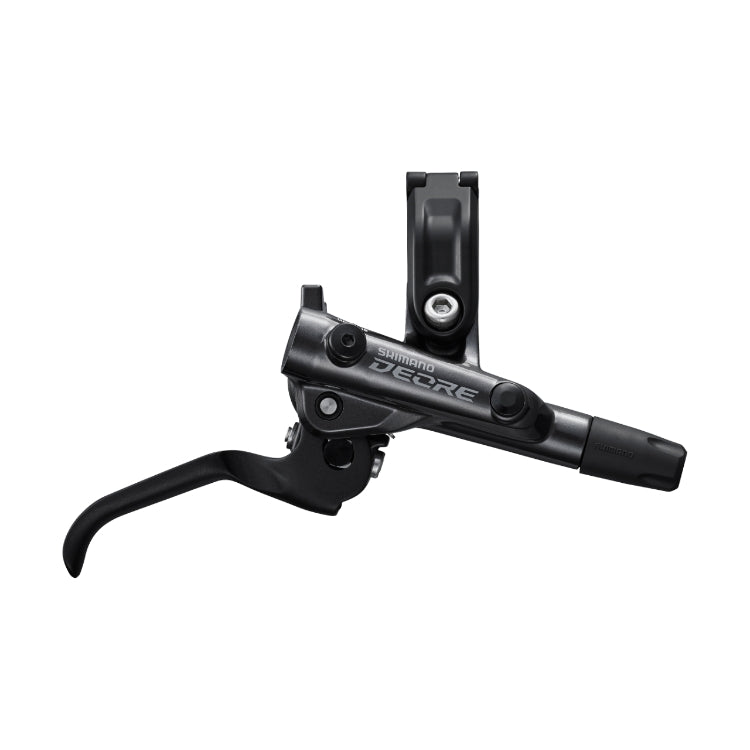

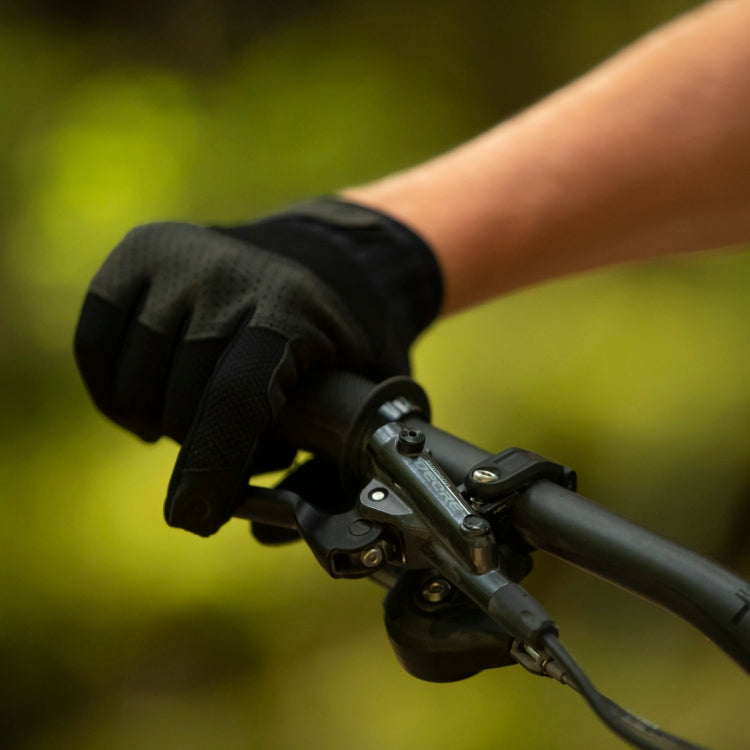

SHIMANO BL-M6100 - Hydraulic Disc brake Lever - I-SPEC EV

With quicker brake engagement and shorter free stroke, the SHIMANO DEORE BL-M6100 brake lever delivers intuitive braking so you can stay focused on the trail ahead. The I-SPEC EV shift lever offers a wider adjustment range for superior rider tuning.

Features:

• Intuitive and powerful braking
• Quicker brake engagement with shorter free stroke
• Rider tunable and action-optimized cockpit
• High-performance brake control
• Additional contact point for a stiffer brake lever
• 10 deg. rotation angle setting range for I-SPEC EV shifting lever

Specifications:

• MODEL NO: BL-M6100
• SERIES: DEORE M6100 Series
• Lever Size: 2 Finger
• Color: Black w/ White Shimano Logo
• Brake Hose Color (Kit): Black
• Brake Hose Model No (Kit): SM-BH90-SS
• Brake Type: Hydraulic Disc Brake
• Hose Joint: Straight
• Oil: SHIMANO Mineral
• Recommended Brake Caliper: BR-MT410 BR-MT420
• Compatible Shift Lever Mount: Clamp Band
• Clamp Band: Open Clamp
• Shift Lever Rotation Angle Adjust Range (I-SPEC EV ; deg.): 10 degrees
• Compatible Shift Lever Mount I-SPEC EV ✔
• Funnel bleeding ✔
• J-Kit Spec (for OEM) ✔
• Reach Adjust Tool ✔

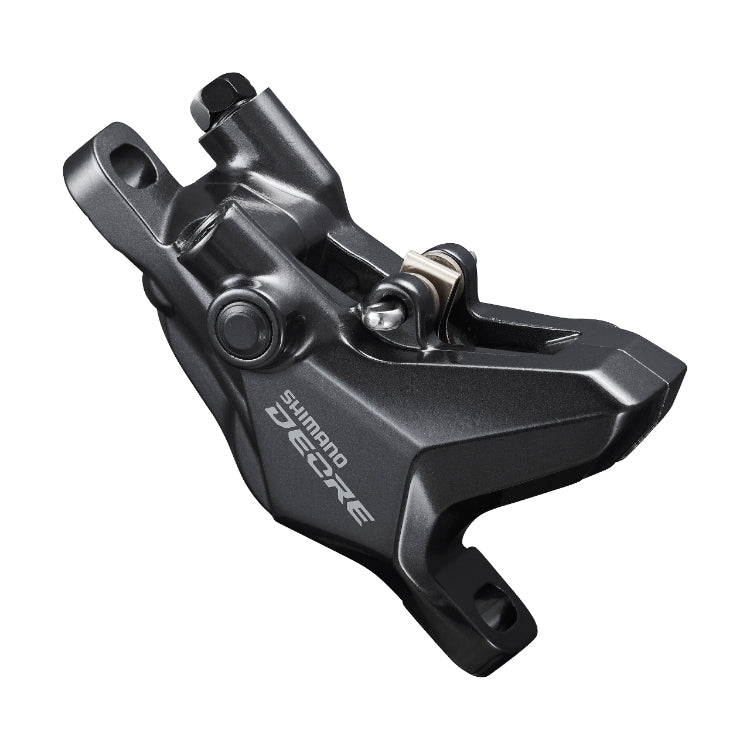

Shimano BR-M6100 2-piston Brake Calipers

SHIMANO DEORE - 2-piston - ICE TECHNOLOGIES - Hydraulic Disc Brake Caliper

The SHIMANO DEORE M6100 caliper features lightweight braking performance and reliable stopping power in all conditions.

Features:

• Superior modulation gives you the power you need at a low weight
• Quick piston retraction
• Lightweight 2-piston disc brake caliper

Specifications:

• MODEL NO: BR-M6100
• SERIES: DEORE M6100 Series
• Color: Black w/ White Shimano Logo
• Brake Hose Color (Kit): Black
• Brake Hose Model No (Kit): SM-BH90-SS
• Only compatible with resin pads
• Brake Type: Hydraulic Disc Brake
• Caliper Fixing Bolt / Anti Loosen Method: Snap Ring
• Caliper Fixing Bolt Tool Size: 5 mm
• Hose Joint: Straight
• Mount Type: Post-type
• Pad Standard 1: G05S-RX Resin (w/o fin)
• Pad Standard 2: J05A-RF Resin (w/ fin)
• Pad Option 1: G04S-MX Metal (w/o fin)
• Pad Mount: Split Pin Stainless Steel
• Piston Count: 2
• Recommended Brake Lever: BL-M4100
• Recommended Disc Brake Rotor: SM-RT54*, SM-RT56*, SM-RT64, SM-RT66
• Compatible Rotor Size: 160, 180, 203, 220mm
• Oil: SHIMANO Mineral
• ONE WAY BLEEDING ✔
• J-Kit spec (for OEM) ✔
