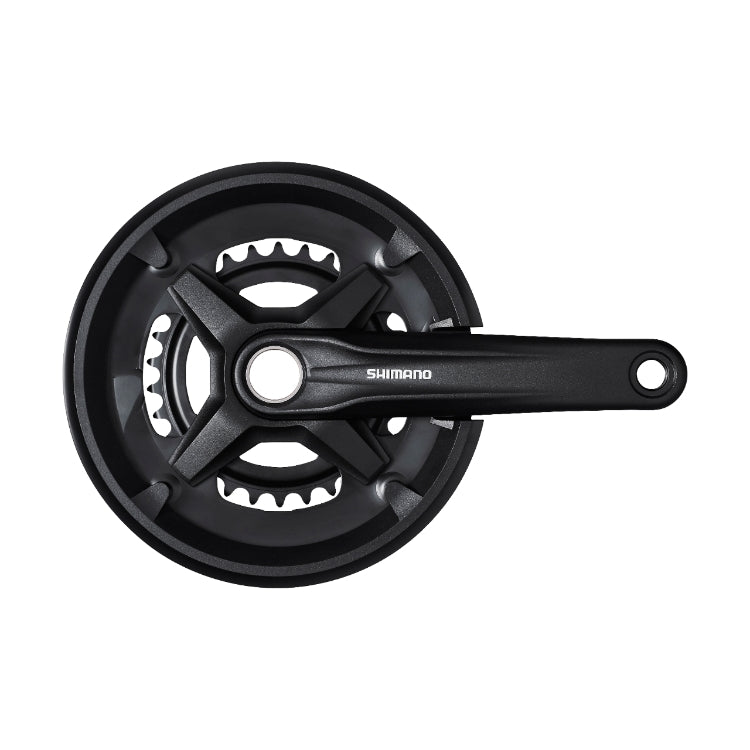

Shimano Alivio FC-MT210 Crankset (2 x 9)

SHIMANO - 2-PIECE CRANKSET - Trail MTB - 2x9-speed

With a 2-piece construction compatible with outboard 24mm bottom brackets, the SHIMANO FC-MT210-B2 is designed for 2x9 speed MTB drivetrains. It features SG-X chainrings and precise, reliable shifting.

Features:

• Smooth and precise shifting performance for trail focused riders
• Narrow Q-factor provides comfortable MTB riding
• HYPERDRIVE
• 3 mm outboard chain line
• Cascading higher series MTB image
• Anodized crank
• 2-PIECE CRANKSET

Specifications:

• MODEL NO: FC-MT210-B2

• SERIES: SHIMANO Alivio M3100 Series

• Color: Black

• Chain Line: 3mm Outboard
• Threaded Bottom Bracket Shell Width: 70mm

• Bike Type: Comfort

• Axle Length of BB-UN/ES Threaded (normal): 113mm

• Chainring Combination: 22-36T
• Compatible BB Type: Outboard

• Crank Arm Length 170mm

• Spider/Gear Arms: 4
• Threaded BB Shell Width: 68mm | 73mm
• Recommended Bottom Bracket - Press-fit: BB-MT500-PA
• Recommended Bottom Bracket - Threaded (normal): BB-MT500
• Q-factor: 176mm
• Chain Line: 51.8mm
• Compatible Chain: HG 9-speed (and others)
• P.C.D. (mm): Riveted
• Rear Speeds: 9
• O.L.D. QR/Nut: 141mm
• O.L.D. Thru: 148mm
• Crank fixing screw included ✔
• Compatible with or without Chain/Bash Guard ✔
• Threaded Bottom Bracket Shell Width: 68mm ✔
• Crank Arm Fixing Bolt: Included ✔
• Compatible with or without Chain/Bash Guard ✔
• Compatible Bottom Bracket Type: Outboard ✔
