Ryder X9 Frame (Thru-Axle Type)

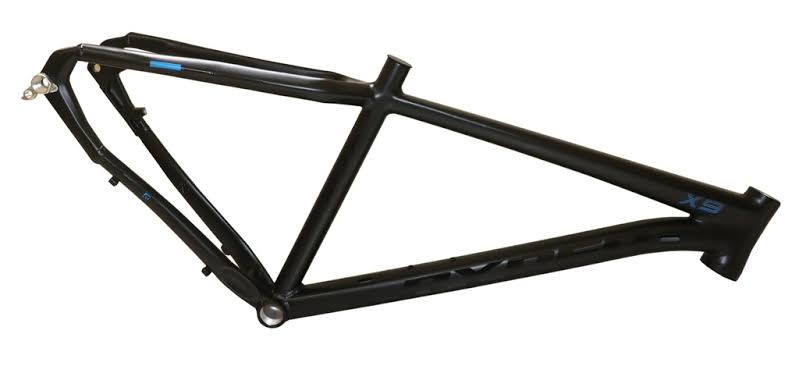

27.5" Specifications/Compatibility:

• Frame Material: Aluminum Alloy
• Max Tire Clearance (w/o fender): Approx. 2.25-2.35in
• Max Tire Clearance (w/ fender): Approx. 2.10in (no fender Mounts integrated into frame)
• Fork Material: Not included with frame
• Fork Height (axle to crown): Compatible with tapered fork
• Fork Offset: n/a
• Headset: not included, compatible with integrated 42 upper, 54 lower
• Seat Post: not included, compatible with 31.6mm
• Seat Collar/Clamp: not included, compatible with 34.9mm
• Front Derailleur: 36mm clamping
• Bottom Bracket: 68mm threaded
• Crank Set: n/a
• Front Brake: n/a
• Front Axle: n/a
• Rear Brake: n/a
• Rear Axle: 12 x 142 non-boost Thru Axle included
• Rear Derailleur Hanger: included
• Rack Mounts: None
• Fender Mounts: None
• Water Bottle Cage Mount: 1 only, bolts not included
• Stem Clamp: not included
• Frame dropout and internal cable caps included
• Other notable features: internally routed cable

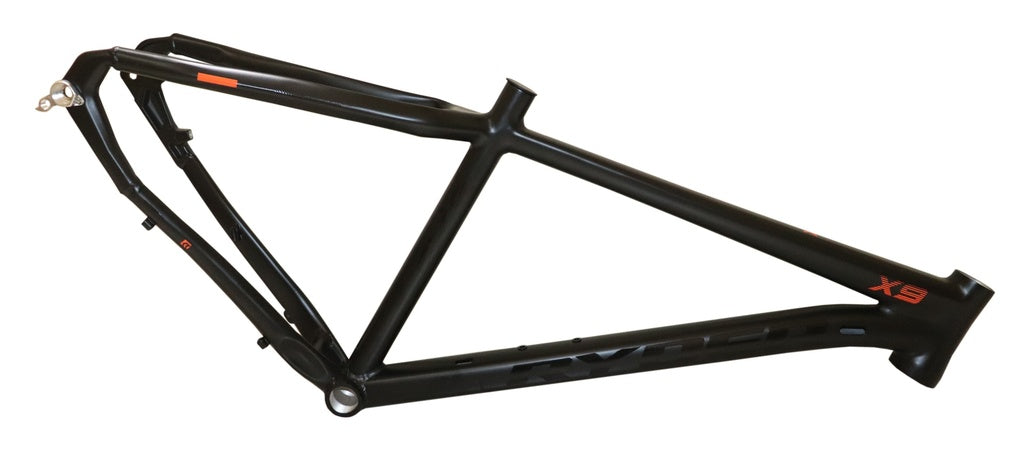

29" Specifications/Compatibility:

• Frame Material: Aluminum Alloy
• Fork Material: Not included with frame
• Max Tire Clearance (w/o fender): Approx. 2.25-2.35in
• Max Tire Clearance (w/ fender): Approx. 2.10in (no fender Mounts integrated into frame)
• Fork Height (axle to crown): Compatible with tapered fork
• Fork Offset: n/a
• Headset: n/a
• Seat Post: n/a
• Seat Collar/Clamp: not included
• Front Derailleur: 36mm clamping
• Bottom Bracket: 68mm threaded
• Crank Set:
• Front Brake:
• Front Axle:
• Rear Brake:
• Rear Axle: 12 x 142 non-boost Thru Axle included
• Rear Derailleur Hanger:
• Rack Mounts: None
• Fender Mounts: None
• 1 only, bolts not included
• Stem Clamp: not included
• Frame dropout and internal cable caps included
• Other notable features: internally routed cable
