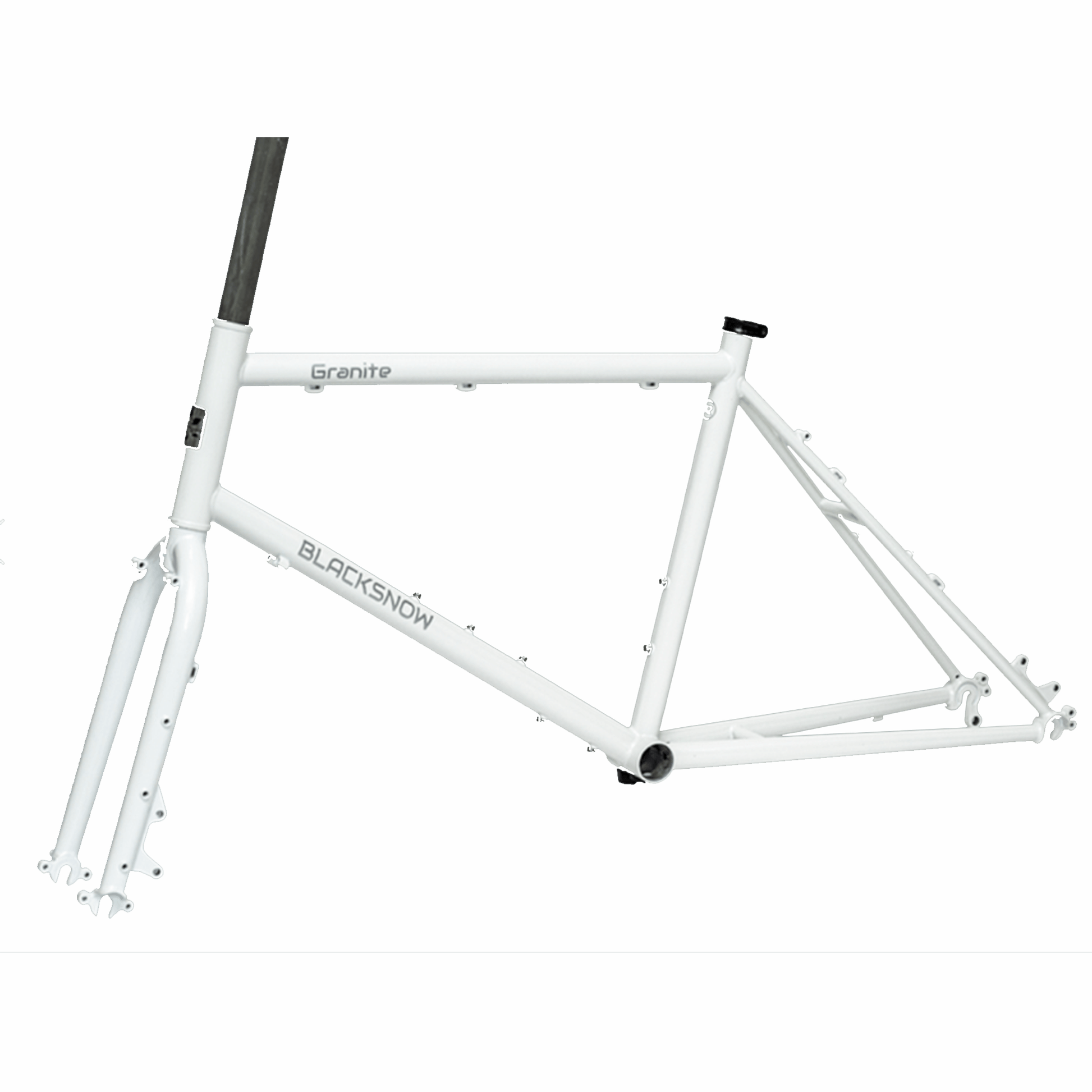

Blacksnow Granite Minivelo Frameset

Regular price ₱20,000.00 PHP
Regular price Sale price ₱20,000.00 PHP
Sale Sold out
Shipping calculated at checkout.

There are loads of wonderful minivelos worldwide, but mostly with thin tires. As a result, they can be fast but not the most comfortable or durable. In response, Blacksnow added tire clearance for 20 x 2.4 inch tires suitable for gravel riding on top of urban cutting.

The Standard Granite comes with BSA 68 bottom bracket while the EBB version ( Eccentric Bottom Bracket ) is designed for internal gear system or single speed.

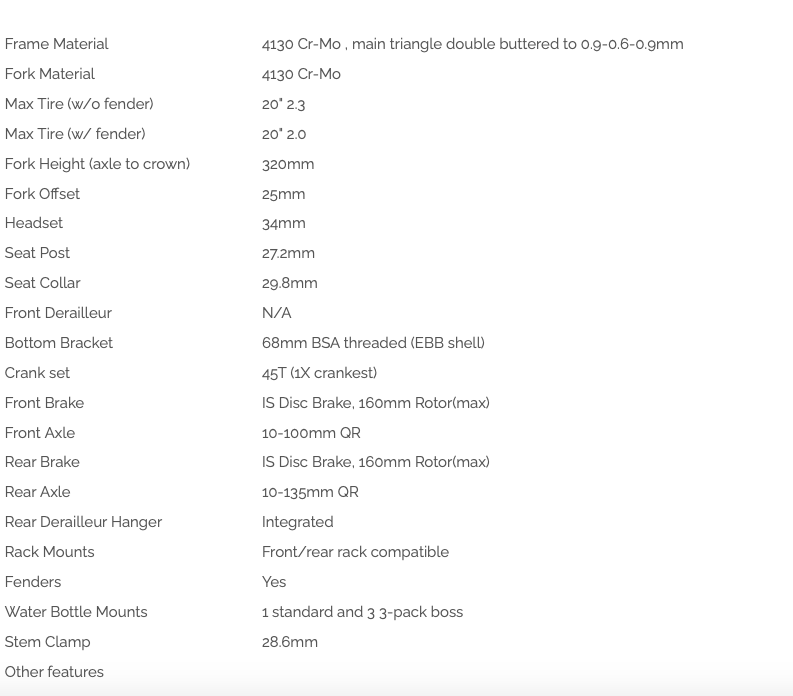

  • Frame Material: 4130 Cr-Mo , main triangle double buttered to 0.9-0.6-0.9mm
  • Fork Material: 4130 Cr-Mo
  • Max Tire (w/o fender): 20" 2.3
  • Max Tire (w/ fender): 20" 2.0
  • Fork Height (axle to crown): 320mm
  • Fork Offset: 25mm
  • Headset: 34mm
  • Seat Post: 27.2mm
  • Seat Collar: 29.8mm
  • Front Derailleur: N/A
  • Bottom Bracket: 68mm BSA threaded (EBB shell)
  • Crank Set: 45T (1X crankset)
  • Front Brake: IS Disc Brake, 160mm Rotor(max)
  • Front Axle: 10-100mm QR
  • Rear Brake: IS Disc Brake, 160mm Rotor(max)
  • Rear Axle: 10-135mm QR
  • Rear Derailleur Hanger: Integrated
  • Rack Mounts: Front/rear rack compatible
  • Fenders: Compatible
  • Water Bottle Mounts: 1 standard and 3 3-pack boss
  • Stem Clamp: 28.6mm
